Slot Rating Circuit
1 3A Rear fog lamp
2 2A Alarm ignition
3 20A Interior fan
4 15A Wiper motor
5 3A Reverse lamp
6 7.5A Direction indicators
7 10A Ignition services
8 7.5A Stop lamps & Battery services
(Stack speedo, tacho and LCD)
9 10A Hazard lamps
10 7.5A Horn
11 10A Alarm & Interior lamp
12 25A Cooling fan
13 BLANK BLANK
14 20A Audio
15 20A Cigar lighter
16 5A Sidelamp LH
17 5A Sidelamp RH and Stack illumination
18 BLANK BLANK
19 BLANK BLANK
20 20A Fast fan speed relay
21 BLANK BLANK
22 BLANK BLANK
Early Elises (pre Oct 97) have several fuse boxes. The main one is located on the left hand side of the front services compartment. A smaller fuse box is located underneath the windscreen motor cover. The fuel pump fuse is located near the ECU at the rear of the car (LH in the boot).
Slot Rating Circuit
1 3A Rear fog lamp
2 2A Alarm
3 15A Interior fan
4 15A Wiper motor
5 3A Reverse lamp
6 7.5A Direction indicators
7 5A Ignition services
8 7.5A Stop lamps & Battery services
9 10A Hazard lamps
10 7.5A Horn
11 10A Alarm & Interior lamp
12 25A Cooling fan
Fusebox under wiper motor
Slot Rating Circuit
13 20A Radio
14 20A Cigar lighter
15 5A Sidelamp LH
16 5A Sidelamp RH
Fuel pump fuse located near ECU LH
Slot Rating Circuit
17 10A Fuel pump

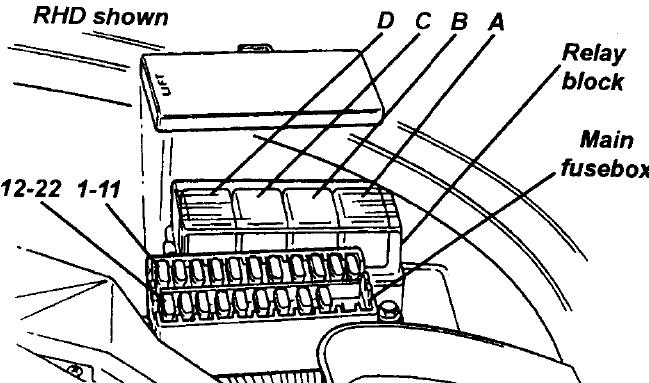

Elise S1 Relays
A Horn
B Cooling fan
C Dip beam
D Main beam
